As homes become increasingly electrified, energy demands continue to rise. From electric vehicle charging stations, hot tubs, and heat pumps to pool equipment and solar panels, modern homes are incorporating more and more energy-intensive appliances.
However, residential electrical infrastructure was not always designed to handle all these loads simultaneously. It is in this context that energy management solutions such as the DCC-12 by RVE become particularly important.
This year, the DCC-12 introduces major new features that significantly expand its range of applications. With a charge control capacity of up to 100 A and the addition of a circuit switching function (load miser), it becomes an even more versatile solution for managing various types of electrical equipment in a home.
A Smart Energy Management Solution
The DCC-12 is a charge controller designed to monitor a home’s electrical panel usage in real time. Its purpose is to ensure that a load is powered only when there is sufficient available electrical capacity.
When the building’s total energy consumption reaches 80% of its capacity, the system temporarily cuts off power to the connected equipment. Once energy demand falls below the set threshold for more than 15 minutes, power is automatically restored.
This smart management system helps protect the existing electrical infrastructure and optimize the use of available capacity.
In many cases, this makes it possible to add new equipment without having to replace the electrical panel with one that has a higher capacity. This can result in significant savings during an installation project.
A Load Control Capacity of Up to 100 A
One of the main new features of the DCC-12 is its increased load management capability.
The system can now control:
- resistive loads up to 100 A (80 A continuous)
- inductive loads up to 50 A (40 A continuous)
This development opens the door to a wider range of residential applications.
By increasing its maximum control capacity, the DCC-12 can now handle more energy-intensive equipment. This makes it even more suitable for modern homes, where energy demand is constantly growing.

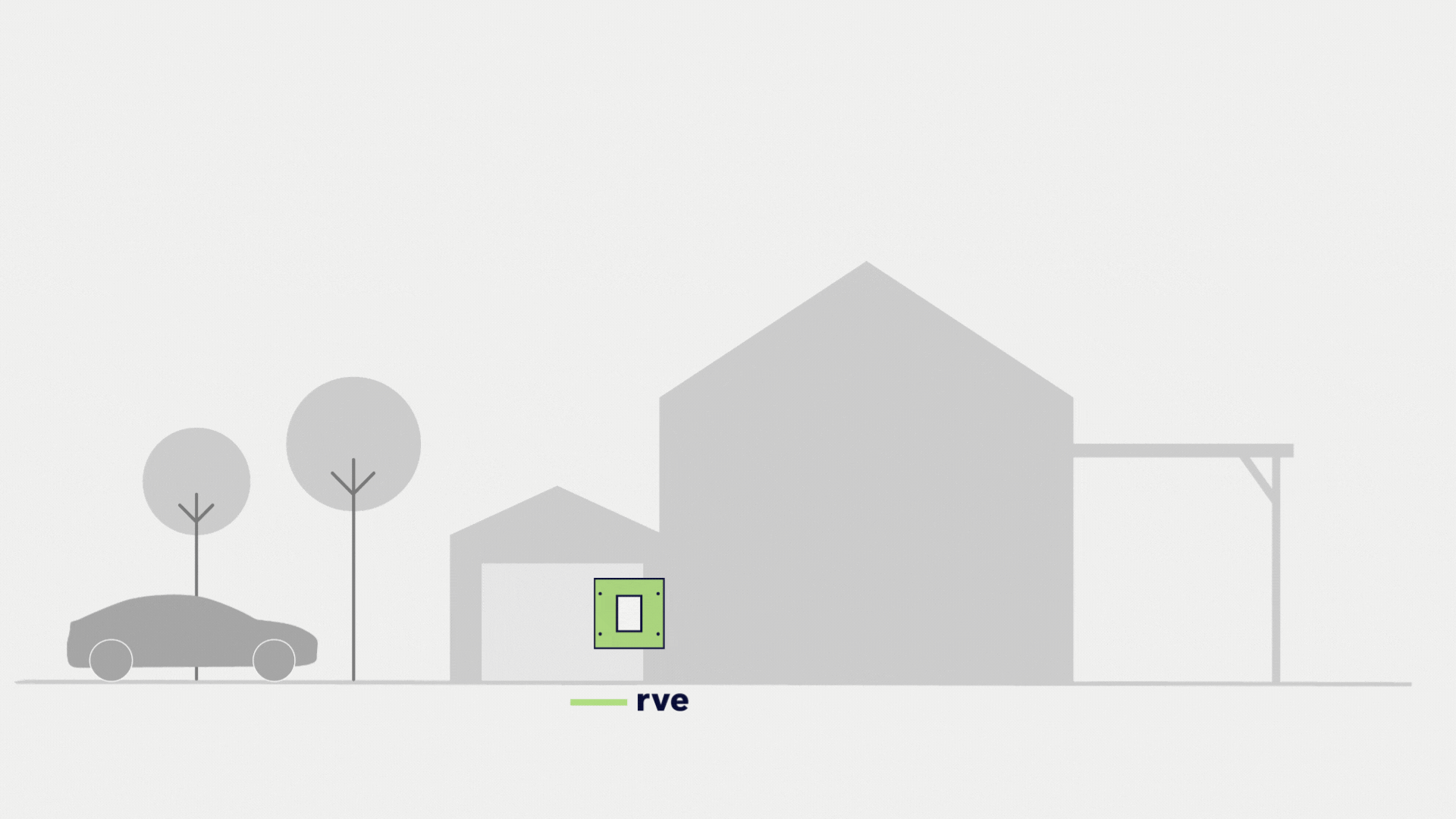

A New Circuit Switching Feature (Load Miser)
Another major innovation is the inclusion of a circuit switching function (load miser).
This feature allows the DCC-12 to switch power between different loads—that is, to transfer electrical current from one circuit to another—depending on the available capacity of the electrical panel.
The DCC-12’s circuit switching application functions as an automatic interlock, ensuring a secondary load is only active when a primary load is not in use. In this configuration, both loads are supplied by a single source breaker, and their simultaneous operation is prevented to ensure the electrical infrastructure's safety.
Essentially, this means that the system can be used to manage multiple appliances within the same installation, rather than being limited to a single load.
Specifically, this approach makes it possible to:
- prioritize certain loads
- optimize the use of available energy
- prevent electrical overloads
With this feature, the DCC-12 becomes a truly versatile energy management tool, capable of adapting to a variety of residential setups.
A Solution Suitable for a Variety of Uses
Thanks to these new features, the DCC-12 can be used in a wide variety of residential settings.
Electric Vehicle Charging Stations
Charging electric vehicles remains one of the most common uses for the DCC-12.
The system allows for the installation of a charging station even when the electrical panel is already at full capacity. Charging then takes place only when available capacity permits, ensuring safe use of the existing infrastructure.
Spas and Pool Equipment
Spas, pool heaters, and heat pumps account for significant energy consumption in a home.
With its ability to handle up to 100 A, the DCC-12 can be used to control this type of equipment, preventing it from operating simultaneously with other energy-intensive loads when the panel’s capacity is limited.

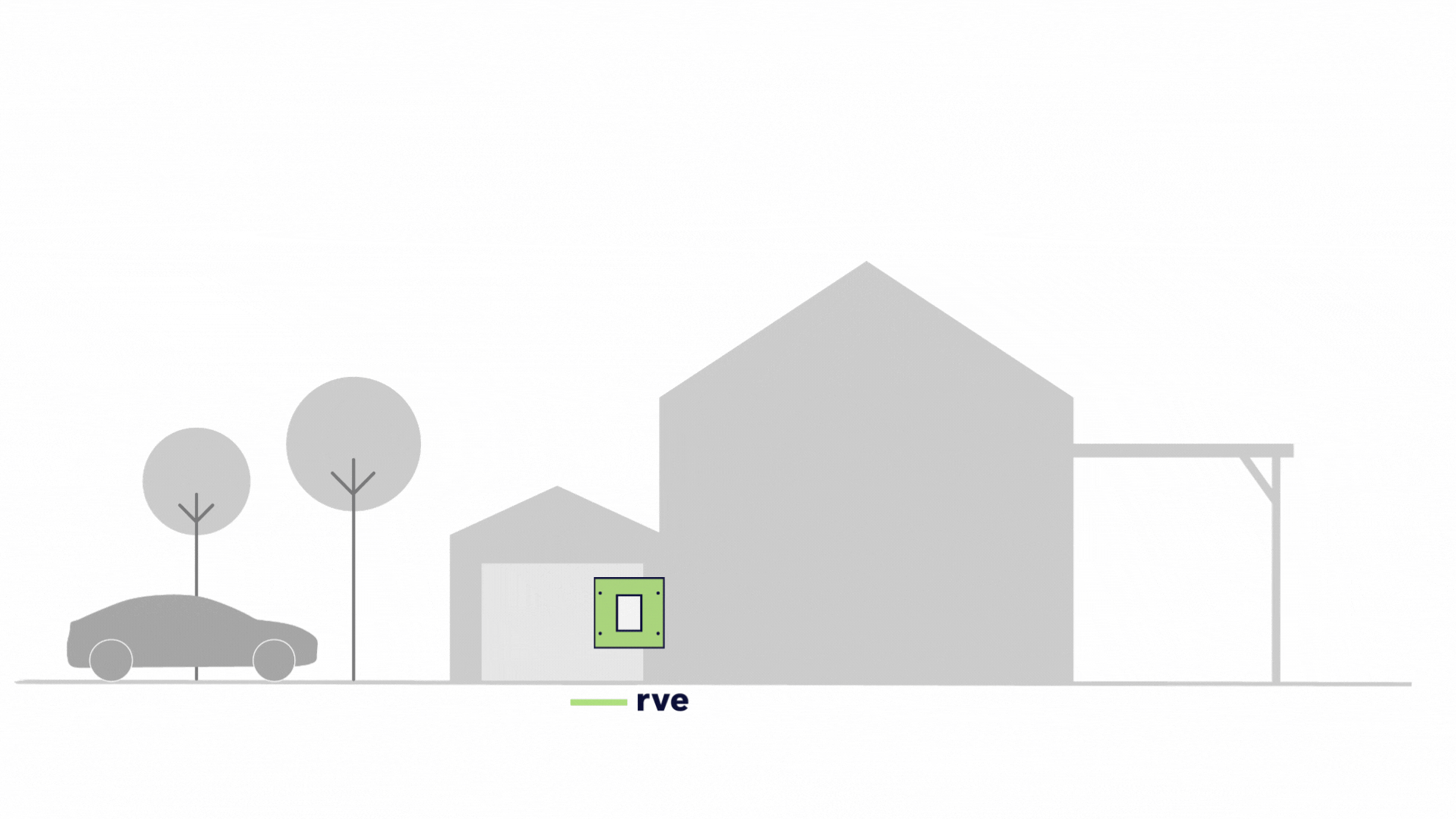

Other Energy-Intensive Residential Appliances
The DCC-12 can also be used to manage other types of loads in a home, such as:
- electric heating systems
- floor heating
- air conditioning systems
This versatility makes it a particularly attractive solution for electricians and residential electrical system designers.
A Solution Adapted to Changing Homes
Homes are rapidly shifting toward more electrified models. Charging electric vehicles, integrating renewable energy, and adding comfort features are putting increasing strain on existing electrical infrastructure.
With its new capabilities—load control up to 100 A and circuit switching functionality—the DCC-12 stands out as a highly flexible solution to support this transition.
Rather than systematically replacing an electrical panel, the DCC-12 allows for the optimization of existing infrastructure while offering great flexibility in adding new equipment. Quick and easy to install, it provides an effective solution for modernizing an electrical system without major construction work.
