ALL800MRB3AK

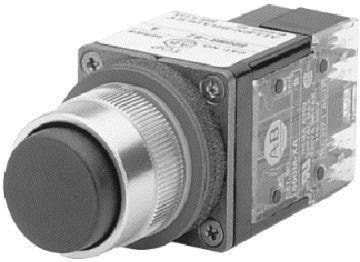

ALLEN BRADLEY 800MR-B3AK Pushbutton 1NO-1NC extended head large screw orange
Description
Specifications
| Brand Name | Allen Bradley | Item Name | Non-Illuminated Push Button Switch |
| Type | Large Screw, Oiltight | Nominal Diameter | 22.5 mm |
| Action | Momentary | Actuator Type | Extended Head |
| Contact Configuration | 1 NO, 1 NC | Contact Rating | 10 A at 600 VAC, 2.5 A at 600 VDC |
| Enclosure Type | NEMA 13 | Color | Orange |
| Series/Model | 800MR | Operating Cycles | 1000000 Mechanical |
| Conductor Size | 12 AWG | Degree of Protection | IP65 |
| Lens Type | Round | Mounting Type | Hole |
| Temperature Rating | 0 - 55 °C | Environmental Conditions | 50% at 40 °C |
| Standards | CSA LR1234, LR11924, IEC 529, UL File No. E14840, E10314, Guide No. NKCR, NOIV | Application | For Harsh Environment |
| UPC | 662073456056 |
Packages
| 1 - Unit |
