ALL800MRFX9BK

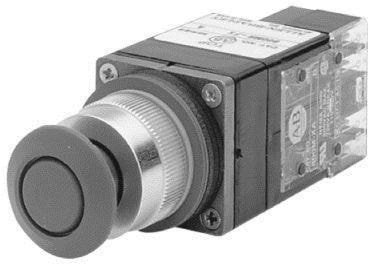

ALLEN BRADLEY 800MR-FX9BK Pushbutton 2NO-2NC maintained 2-position large screw yellow
Description
Specifications
| Brand Name | Allen Bradley | Item Name | Non-Illuminated Push Button Switch |
| Type | 2-Position, Large Screw, Oiltight | Nominal Diameter | 22.5 mm |
| Action | Push-Pull, Maintained | Contact Configuration | 2 NO, 2 NC |
| Contact Rating | 10 A at 600 VAC, 2.5 A at 600 VDC | Enclosure Type | NEMA 13 |
| Color | Yellow | Series/Model | 800MR |
| Operating Cycles | 1000000 Mechanical | Conductor Size | 12 AWG |
| Degree of Protection | IP65 | Lens Type | Round |
| Mounting Type | Hole | Temperature Rating | 0 - 55 °C |
| Environmental Conditions | 50% at 40 °C | Standards | CSA LR1234, LR11924, IEC 529, UL File No. E14840, E10314, Guide No. NKCR, NOIV |
| Application | For Harsh Environment | UPC | 662468292016 |
Packages
| 1 - Unit |
