ALL800MRFXP16XAK

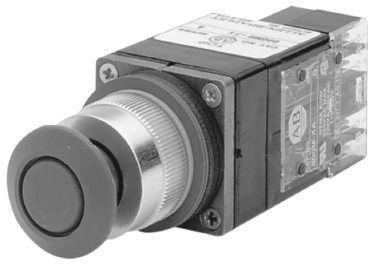

ALLEN BRADLEY 800MR-FXP16XAK Pushbutton 1NO-1NC maintained transformer incandescent 120VAC
Description
Specifications
| Brand Name | Allen Bradley | Item Name | Non-Illuminated Push Button Switch |
| Type | 2-Position, Large screw, Oiltight, Transformer | Nominal Diameter | 22.5 mm |
| Action | Push-Pull, Maintained | Lamp Type | Incandescent |
| Contact Configuration | 1 NO, 1 NC | Contact Rating | 10 A at 600 VAC, 2.5 A at 600 VDC |
| Lamp Voltage | 120 VAC at 50/60 Hz | Enclosure Type | NEMA 13 |
| Series/Model | 800MR | Operating Cycles | 1000000 Mechanical |
| Conductor Size | 12 AWG | Degree of Protection | IP65 |
| Lens Type | Round | Mounting Type | Hole |
| Temperature Rating | 0 - 55 °C | Environmental Conditions | 50% at 40 °C |
| Standards | CSA LR1234, LR11924, IEC 529, UL File No. E14840, E10314, Guide No. NKCR, NOIV | Application | For Harsh Environment |
| UPC | 662073412052 |
Packages
| 1 - Unit |
