ALL800MRJ44BBK

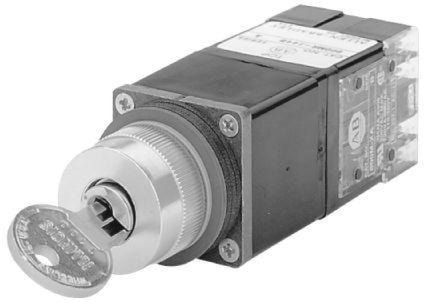

ALLEN BRADLEY 800MR-J44BBK Switch selector 1NO-1NC maintained key lock in all-position B-cam large screw
Description
Specifications
| Brand Name | Allen Bradley | Item Name | Non-Illuminated Selector Switch |
| Type | Oiltight | Size | 22.5 mm |
| Voltage Rating | 300 VAC | Number of Positions | 3 |
| Action | Maintained, All Position Locking | Contact Configuration | 1 NO, 1 NC |
| Cam | B | NEMA Rating | NEMA 13 |
| Series/Model | 800MR | Operating Cycles | 200000 Mechanical |
| Degree of Protection | IP65 | Terminal Type | Large Screw |
| Mounting Type | Hole | Temperature Rating | 32 - 131 °F |
| Environmental Conditions | -40 to 85 °C Storage, 50% at 104 °F Humidity | Standards | UL Listed, UL File No. E14840, E10314, CSA File No. LR1234, LR11924, IEC 529 Certified |
| UPC | 662073457312 |
Packages
| 1 - Unit |
