ALL700SCF440QJC

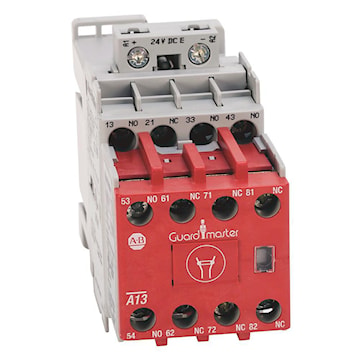

ALLEN BRADLEY 700S-CF440QJC Safety Control Relay 600/690 V,
Description
Specifications
| Brand Name | Allen Bradley | Item Name | Safety Control Relay |
| Voltage Rating | 600/690 V | Coil Rating | 12/24 VAC |
| Contact Rating | 20 A | Contact Configuration | 4 NO, 4 NC |
| Number of Poles | 8 | Series/Model | 700S-CF |
| Frequency Rating | 60 Hz | Conductor Size | 16-10 AWG |
| Dielectric Strength | 2500 V | Degree of Protection | IP2X |
| NEMA Rating | A600, P600 | Temperature Rating | -13 to 140 °F |
| Environmental Conditions | -67 to 176 °F | Standards | IEC 947-5-1, EN 50011, EN 50005, EN 50022, UL 508, VDE 0660, CSA C22.2 Part 14, CE, CSA Certified, UL Listed, File E14840, Guide NKCR, SUVA Third Party Certified |
| Application | For Use in Safety Circuits | UPC | 889508027562 |
Packages
| 1 - Unit |
