INTCT2000

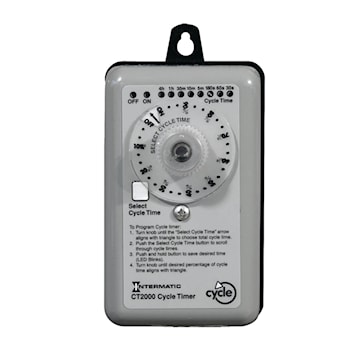

INTERMATIC CT2000 Percentage Cycle Timer Percentage Cycle 20 A,
Description
CT2000 Percentage cycle timer is a field adjustable timer, offering true flexibility for repetitive cycle times via upfront control button. This timer provides repetitive cycling for fans, misters, foggers, feeders, process equipment, oil pumps, irrigation, nurseries and other short cycle applications. Provides 8 field selectable cycle durations: 30 seconds, 1 minute, 3 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour and 4 hours. Provides 30 separate detent positions for precise selection of percentage On time. User settings stored in non-volatile memory. Control buttons on front of timer. No DIP switches to program cycle time. Manual ON/OFF control allows for temporary or permanent override. Designed to function in dusty, ammonia and wash-down environments. Able to withstand surge of up to 6,000 VAC.
Specifications
| Brand Name | Intermatic | Item Name | Percentage Cycle Timer |
| Type | Percentage Cycle | Voltage Rating | 120/240 VAC |
| Amperage Rating | 20 A | Contact Configuration | SPST - 1 NO |
| Contact Rating | 20 A at 120/240 VAC/28 VDC (Resistive), 20 A at 240 VAC (General Purpose), 5 A at 240 VAC (Tungsten Incandescent), 10 A at 277 VAC (Ballast Fluorescent), 470 VA at 240 VAC | Frequency Rating | 60 Hz |
| Time Range | 4 hr | Number of Poles | 1 |
| Terminal Connection | Screw | HP Rating | 1 hp at 120 VAC, 2 hp at 240 VAC |
| Reset Time | 0.5 min | Mounting | Wall, Surface |
| Material | Aluminum | Color | Gray |
| Enclosure Type | NEMA 3R | Temperature Rating | 14 - 129 °F, -10 to 54 °C |
| Standards | cCSAus Certified, HVACR | Application | For Indoor, Outdoor, Fans, Misters, Foggers, Feeders, Process Equipment's, Oil Pumps, Irrigation, Nurseries, HVACR |
| UPC | 078275124363 |
Packages
| 1 - Unit | 6 - Box | 432 - Pallet |
