LEV49104IDC

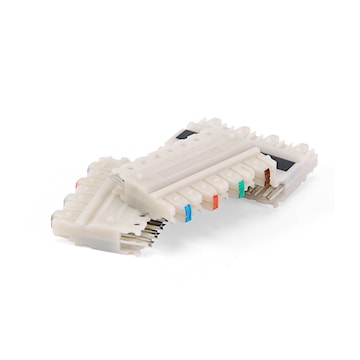

LEVITON 49104-IDC GigaMax
Description
The 110 connector blocks shall support termination for voice, security, and Category 5e data applications, including high megabit and shared-sheath applications when used with power sum rated cabling. The blocks shall be Category 5e compliant, UL listed and TIA/EIA-568-B compliant.
Specifications
| Brand Name | Leviton | Sub Brand | GigaMax® |
| Item Name | C-4 Clip | Type | 110-Style |
| Wire Gauge | 26-22 AWG Solid | Category Type | Category 5e |
| Material | Fire-Retardant Plastic | Dimensions | 1.2 in W x 0.3 in D x 0.926 in H |
| For Use With | 41AB2-1FX, 41DBR-1FX Wiring Block | Standards | ANSI/TIA-568.2-D, cULus Listed, ISO 9001 Registered |
| Application | For Commercial Applications | UPC | 078477189092 |
Packages
| CH - Unit | 10 - Box | 500 - Crate |
