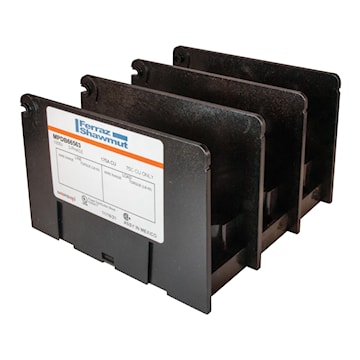

MERSEN MPDB66563 Power Distribution Block 14-2 AWG, 14-2/0 AWG 3 P, 175 A,

Price $464.38 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:MERSEN
Manufacturer #:MPDB66563

Description

Open-style power distribution block provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. Direct screw mounting. Box to box connection terminal type. Polycarbonate, stainless steel body material. Tin-plated copper and aluminium material contact. Applications: cable splicing, splitting primary power into secondary circuits, fixed junction tap-off points.

Specifications

Brand Name Ferraz Shawmut Item Name Power Distribution Block
Type Intermediate, Open Style Voltage Rating 600 VAC/VDC
Amperage Rating 175 A Number of Poles 3
Conductor Size 14-2 AWG, 14-2/0 AWG Mounting Type Direct Panel
Series MPDB Spacing 1 in (Air), 2 in (Surface)
Connection Type Box to Box Block Material Glass-Filled Polycarbonate
Terminal Material Tin Plated Copper Color Black
Dimensions 5.28 in L x 3-1/4 in W x 5 in H Standards UL Listed, CSA Certified Class 6228 01, RoHS Compliant
Application For Cable Splicing Splitting Primary Power Into Secondary Circuits Fixed Junction Tap-Off Points UPC 782001454173

Packages

1 - Unit 3 - Box
