lev28w75

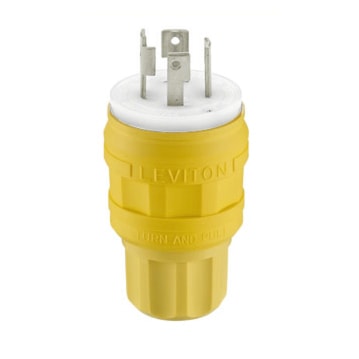

LEVITON 28W75 Wetguard® Locking Plug 30 A, 250 V, Industrial Grade

Price $166.58 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:LEVITON
Manufacturer #:28W75

Description

Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments. EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents. Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse. Interlocking tongue and groove construction seals out water, moisture and dirt when plugs are mated with connectors. Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal. Non-magnetic stainless steel fast-threading assembly screws won't interfere with sensitive equipment.

Specifications

Brand Name Leviton Sub Brand Wetguard®
Item Name Locking Plug Type Industrial Grade
Number of Wires 4 Number of Poles 3
Voltage Rating 250 V Amperage Rating 30 A
Conductor Size 12 - 8 AWG NEMA Configuration L15-30P
Color/Finish Yellow Cord Type SO,SOO,ST,STO
Phase 3 Terminal Connection Screw Terminal
Temperature Rating -40 °C to 60 °C Contact Material Electroless Nickel-Coated Brass
NEMA Rating L15-30P Material TPV
Grounding Grounding Mounting Type Cable
Dimensions 2.28 in dia x 3.61 in L Environmental Conditions Watertight
Standards NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No.42, UL 498 Application Industrial
UPC 078477096017

Packages

1 - Unit 10 - Crate 640 - Pallet
