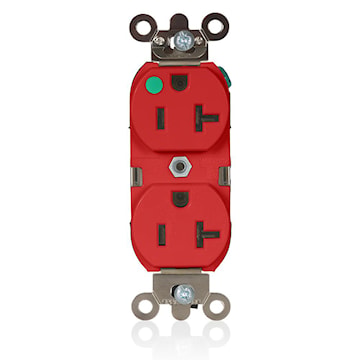

LEVITON 8300-HLR Receptacle duplex wire lead nylon 20A 125V red

Price $98.14 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:LEVITON
Manufacturer #:8300-HLR

Description

Heavy-duty back and side wired/wire lead. Duplex, illuminated. NEMA type 5-20R. Impact-resistant thermoplastic nylon cover and body. Smooth face does not collect dirt. Four corner latches securely fasten face. Extra heavy-duty triple-wipe, brass T-contacts for superior contact and conductivity. High-performance brass No.10-32 terminal screws to reduce conductor oxidation. Back and side-wire ground termination brass strap version. Back and side-wiring options. Break-off tabs for easy two-circuit conversion. Apron barrier to prevent accidental contact between terminal screw heads and metal box. Exclusive V-shaped, serrated back-wiring clamps for superior contact. Power Indication™ provides permanent green dot lens with 100000 hour LED status indicator. Wire lead receptacles for fast and easy installation. Backed by a limited 10-year warranty.

Specifications

Brand Name COMM IND RECEPTACLES Sub Brand INDUSTRIAL RECEPTACLES
Type Duplex Outlet,Straight Blade Grade Heavy-Duty Hospital
Size 46 H x 1.38 W x 1.12 D IN Voltage Rating 125 V
Amperage Rating 20 A Number of Poles 2
Number of Wires 3 Connection Type Back And Side Wired
NEMA Rating 5-20R Material Thermoplastic
Color Red,Red Phase 1
Dielectric Strength 2000 (Min.) Grounding Self-Grounding,Self-Grounding
Mounting Type Wall Box Temperature Rating -40 To 60 °C
Environmental Conditions Flammability (Rated V-2 Per UL94) Standards NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399)
Application Hospital UPC 078477057278

Packages

1 - Unit 10 - Box 50 - Crate 3200 - Pallet
