lev5490bu

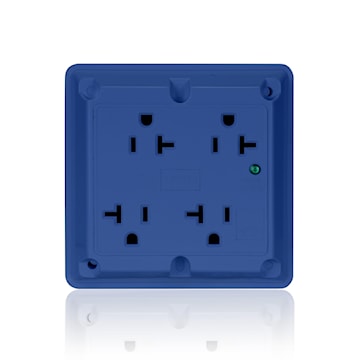

LEVITON 5490-BU 4-in-1 Surge Protective Receptacle 20 A, Blue
lev5490bu
LEVITON 5490-BU 4-in-1 Surge Protective Receptacle 20 A, Blue
Price
$136.01
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5490-BU
Description
Extra heavy duty specification grade surge protective 4-in-1 receptacle. NEMA type-5-20R. Grounding. Surge with indicator light. Indicator light assures you that your critical equipment is protected.
Specifications
| Brand Name | Leviton | Sub Brand | 4-in-1 Surge Receptacles |
| Item Name | Surge Protective Receptacle | Type | 4-in-1 |
| Grade | Commercial Specification | Size | 4.50 W x 1.15 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Short Circuit Rating | 5 KAMP | Conductor Size | 14-10 AWG |
| Material | Polycarbonate | Color | Blue |
| Grounding | Grounding | Contact Material | Brass |
| Dimensions | 4.5 in W x 1.15 in D | Mounting Type | Box |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Standards | NEMA WD-1, WD-6, ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL 498 (File E13399) | Application | For Commercial Use |
| UPC | 078477843598 |
Packages
| 1 - Unit | 10 - Crate | 1600 - Pallet |
