lev47cm10

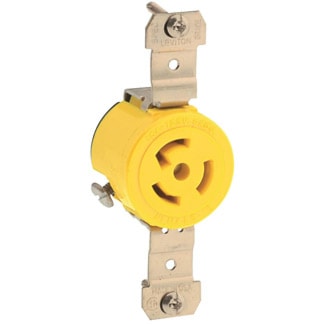

LEVITON 47CM-10 Locking Single Outlet Locking Single Receptacle 15 A, L5-15R Yellow
Levitons industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Brand Name | Leviton | Sub Brand | Locking Devices |
Item Name | Locking Single Receptacle | Type | Locking Single Outlet |
Grade | Commercial | Size | 3.63 H x 1.69 W x 1.31 D IN |
Voltage Rating | 125 V | Amperage Rating | 15 A |
Number of Poles | 2 | Number of Wires | 3 |
NEMA Configuration | L5-15R | Connection Type | Back Wired |
NEMA Rating | L5-15R | Conductor Size | 18-10 AWG |
Material | Nylon | Color | Yellow |
Dielectric Strength | 2000 V | Grounding | Grounding |
Contact Material | Nickel-Plated Brass | Dimensions | 3.63 in H x 1.69 in W x 1.31 in D |
Mounting Type | Box | Temperature Rating | -40 °C to 60 °C |
Environmental Conditions | Corrosion-Resistant | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) |
Application | For Commercial | UPC | 078477811078 |
1 - Unit | 10 - Box | 30 - Crate | 2640 - Pallet |
